Oct 01, 2025 - Sign Structures Manufacturer in Canada: A 2025 Buyer’s Guide to Overhead, Cantilever, and Monotube Systems

After decades of designing and building infrastructure poles across Canada, Nova Pole is frequently asked by contractors, consulting engineers, and transportation agencies how to pick the best sign support for a particular corridor. It's not just aesthetics when choosing between monotube systems, cantilever sign structures, and overhead sign bridges. In Canada's climate, this choice has an impact on safety, constructability, costs, maintenance, and service life. To assist you in weighing your alternatives and working productively with a sign structures manufacturer, we provide a useful framework that is based on actual project experience.





The weather and topography of Canada are as diverse as the people we serve. Structural design is influenced by the West Coast's seismic demands, British Columbia's coastal corrosion, the Prairies' wind regimes, and Atlantic Canada's heavy rime ice. The engineering foundation was established by the Canadian Highway Bridge Design Code, or CSA S6, CSA S16 for steel design, and CSA W59 for welding. In addition to having quality mechanisms in place to track materials and weld processes, a qualified sign structures manufacturer should be certified to CWB W47.1. All of Nova Pole's galvanized steel sign structures are created in accordance with these guidelines and sealed by P.Eng. specialists who hold the necessary provincial licenses.



Where overhead sign bridges make sense

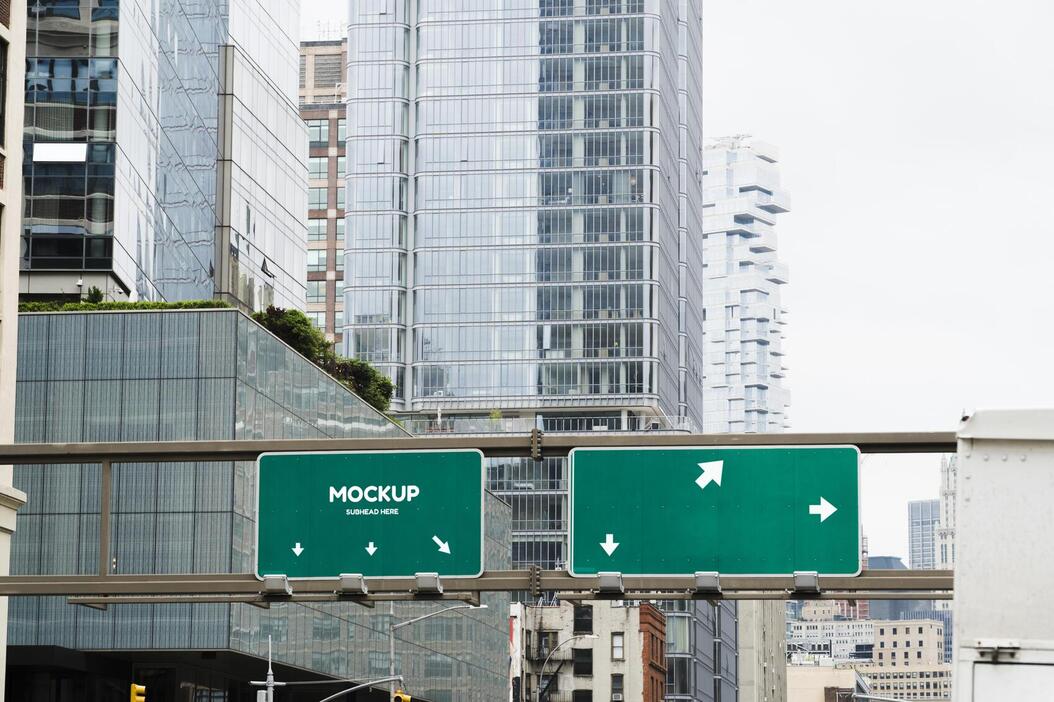

The best multi-lane coverage and legibility are provided by full-span overhead sign bridges. All vehicles can view messages without lane bias on multilane roads like Highway 401 or parts of the Trans-Canada Highway thanks to overhead structures. When interchanges need lane control signals, several sign panels, or dynamic message signs, they are the preferred option. From a structural perspective, these bridges can be useful in areas with heavy wind and ice loads since they divide loads among two foundations. Additionally, overhead sign bridges provide ample space for the incorporation of future technologies, such as fibre management, traffic sensors, and CCTV cameras. As a sign structures manufacturer, we suggest box-girder or modular truss layouts that may be supplied in sections and spliced in the field to shorten the time needed for lane closure. Even in coastal areas, galvanized coatings in accordance with CSA G164 and optional duplex powder-coat systems provide long-term corrosion protection.



Cantilever sign structures

Cantilever sign structures offer an effective sign display solution in urban locations with arterials, ramps and shorter highway stretches. When the right-of-way is limited or utilities overlap with an adjacent foundation, single- and double-arm cantilevers can reduce the footprint on the far side while keeping vision unobstructed. Cantilevers featuring tapering shafts and ornamental lighting can be designed to blend seamlessly into urban corridors while meeting structural requirements and municipal goals. Unbalanced loading should always be kept in mind when selecting cantilevers. Shaft, arm and base connections must withstand ice buildup, wind gusts, and eccentric panel location. We work closely with both owners and consultants in analyzing local climate loads such as arm length and panel size to select between single- or double-arm arrangements.



Why monotube systems are gaining traction

Many agencies prefer monotube sign bridges due to their low drag profile and sleek, uncluttered aesthetic. When compared with open trusses, their round closed portion efficiently disperses snow and ice accumulation while creating fewer maintenance pockets. Monotube sign constructions offer a modern appearance while supporting heavy loads in corridors with strict architectural regulations, like those found throughout Quebec and many municipalities in Ontario. Furthermore, their circular shape is effective against gusts of wind or vortex-shedding fatigue. Fabrication quality for monotube systems is of utmost importance because field splices, tube diameters and fitment tolerances all affect durability and aesthetics. As a Canadian sign structures manufacturer, our manufacturing facilities use hot-dip galvanizing, automated welding processes and precision-rolled sections for sign structures to offer complete protection on all sides. When designing DMS cabinets, we include internal conduit lines and access ports to achieve an unobstructed external profile and minimize maintenance requirements.



Engineering criteria that drive selection

Wind, ice and seismic loads from CSA S6 climate maps should serve as the starting point in selecting an appropriate structure. Their influence affects span lengths, sign panel areas and minimum clearance requirements among other parameters. Clearance procedures must take account of bridge deck overlays, resurfacing allowances and future ITS hardware installation. Provincial ministries like the British Columbia Ministry of Transportation and Infrastructure, Alberta Transportation, or MTO oversee these clearance processes. At Nova Pole, we take foundation design seriously. We aim to avoid heave while offering sufficient embedment if there is thick frost coverage; base plate details and anchor rod ductility become particularly critical factors during seismically active times such as British Columbia.

These structural decisions should also include consideration for materials. Aluminum may be suitable for narrow spans where weight reduction makes installation simpler, but corrosion risk is high. Galvanized steel remains the go-to material due to its strength, lifespan performance and corrosion prevention properties. Duplex systems (galvanizing first before powder coating) prolong service life while complementing municipal colour schemes, and offering lasting corrosion resistance.



Constructability and traffic management

A design that can be installed effectively and safely is the ideal. To reduce the frequency and length of lane closures, we design our sign structures around pick weights, splice sites, and crane access. The biggest savings are achieved by modularization, especially in crowded hallways when night work is required. We work with contractors on temporary supports and rigging points, and we provide erection sequences. We also assess the reuse of anchor patterns and foundations for retrofit projects, offering solutions or adapter plates as needed. In order to keep delivery promises throughout the busiest building seasons, our project managers arrange freight, inspection windows, and galvanizing schedules across regions.



Quality assurance and documentation

Transportation agencies require verifiable quality. Weld maps, mill test results, galvanizing certificates, general design and shop drawings, PE-stamped calculations, and inspection records all support each of our products. Non-destructive testing is carried out in accordance with project-specific specifications and CSA. Beginning with raw steel, traceability extends throughout fabrication, coating, and delivery. Owners are guaranteed a record for asset management systems and upcoming audits.



Integration of technology and maintenance access

The modern corridors are becoming more and more intelligent. From the beginning, we plan for power and data routing, lane control signals, and DMS enclosures. This entails making provisions for internal conduits, cable trays, handholes, and lockable access doors that protect technicians and equipment. Vandal-resistant hardware, climbable shafts with safety features, and maintenance platforms lower lifetime costs while enhancing worker safety. We take into account snow-shedding elements around panel edges and attachments, as well as heated cabinets, in cold climates. As a sign structures manufacturer, we also offer lighting poles and specialty poles; these features are easier and more affordable while maintaining uniformity along a corridor.



Making the choice: overhead, cantilever, or monotube?

No one method is appropriate for every site. Cantilever sign structures are perfect for ramps and restricted rights-of-way, overhead sign bridges perform well on busy roads with intricate lane designations, and monotube systems offer a low-maintenance, streamlined solution where aerodynamic performance and aesthetics are important. A strict, Canadian-code-compliant design backed by a manufacturer who is aware of local regulatory requirements, agency preferences, and the reality of winter building is the common denominator. Panel area capacity, deflection limitations, fatigue life, installation time, and lifecycle cost are all quantified for each of our products.



Partnering with Nova Pole

Nova Pole is not just a Canadian sign structures manufacturer, we also produce decorative poles, traffic signal poles, and streetlight poles. We have CWB-certified facilities, and our coatings meet or surpass CSA G164 and applicable provincial requirements. With an emphasis on safety, timeliness, and total cost of ownership, we offer a full-service approach from early feasibility through stamped IFC drawings, manufacturing, galvanizing, shipping, and site support.

Whether you are planning a 400-series highway, a municipal arterial, an urban streetscape, or the Trans-Canada, it is best to start working with a sign structures manufacturer early on. To optimize the design holistically, provide your geotechnical data, survey, sign layouts, and ITS needs. At Nova Pole, we are available to assist you in evaluating overhead, cantilever, and monotube systems and customizing them to the Canadian climate. Every km demonstrates the engineered dependability that Nova Pole is known for.
