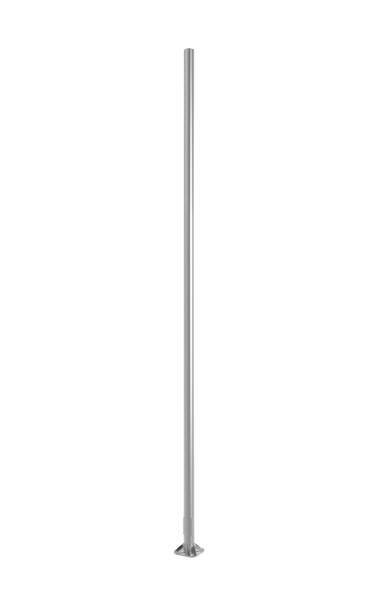

4" Straight Round Aluminum (NSRA4)

4" Straight Round Aluminum (NSRA4)



If supplied, the festoon box is installed at 5m height. Notify Nova Pole if different mounting height is required. Hand hole ring mounting height is 12” to centre and comes with (3”x5”) hand hole cover. Wind speeds (mph) in the table denote the maximum wind gust speed at the project site (i.e. gust factor included). Maximum EPA rating includes fixture(s) and supporting arm(s) and is for standard pole installation on concrete bases/footings. All poles are supplied with nut covers, shims and top plastic cap. Pole designs based on AASHTO Standard Specifications for Structural Supports for Highway Signs, Luminaires, and Traffic Signals. Contact Sales Team for custom sizes and/or applications. Specific information and details may be subject to change without notice. Please see Warranty and Terms & Conditions.

Catalogue
Number

Pole
Height
(ft)

Pole
Weight
(lbs)

Pole
Type

Anchor
Bolt
Size

Base
Plate
Type

Maximum EPA (sq.ft.)

80MPH

90MPH

100MPH

110MPH

NSRA408LD

8

19

LD

3/4" x 24"

A

7.9

6.0

4.7

3.9

NSRA408MD

8

29

MD

3/4" x 24"

A

16.6

12.9

10.4

8.5

NSRA410LD

10

22

LD

3/4" x 24"

A

5.9

4.3

3.3

2.7

NSRA410MD

10

35

MD

3/4" x 24"

A

12.8

9.9

7.9

6.5

NSRA412LD

12

26

LD

3/4" x 24"

A

4.3

3.0

2.2

1.7

NSRA412MD

12

41

MD

3/4" x 24"

A

10.2

7.7

6.2

5.0

NSRA414LD

14

30

LD

3/4" x 24"

A

3.0

1.9

1.2

0.9

NSRA414MD 14 47 MD 3/4" x 24" A 7.9 5.9 4.6 3.7
NSRA416LD 16 33 LD 3/4" x 24" A 1.9 1.0 0.5 0.2
NSRA416MD 16 53 MD 3/4" x 24" A 6.0 4.3 3.4 2.6
NSRA418MD 18 59 MD 3/4" x 24" A 4.5 3.1 2.3 1.8
NSRA420MD 20 64 MD 3/4" x 24" A 3.2 2.0 1.4 1.0
NSRA25MD 25 79 MD 3/4" x 24" A 0.6 - - -



Pole Type Wall Thickness: LD = 0.125", MD = 0.188", HD = 0.250"
